This section provides a quick introduction of Virtual Trackball Rotation model used by PyMol to rotate the molecule structure in 3-dimensions.

Once the molecule structure is displayed in the viewer window, you can rotate the molecule structure in 3-dimensions using the virtual trackball rotation model as described below.

1. The molecule structure is attached to a virtual trackball with the center of thr structure located at the center of the trackball.

2. The center of the trackball is fixed at the center of a 3-dimensional coordinate system on the screen with x-axis displayed horizontally, y-axis displayed vertically, and z-axis displayed perpendicular to the screen.

3. The trackball can be rotated by the left mouse button in 4 ways:

• Click the trackball at the center and drag is vertically to rotate it about the x-axis.
• Click the trackball at the center and drag is horizontally to rotate it about the y-axis.
• Click the trackball on the left or right edge and drag is vertically to rotate it about the z-axis.
• Click the trackball on the top or bottom edge and drag is horizontally to rotate it about the z-axis.

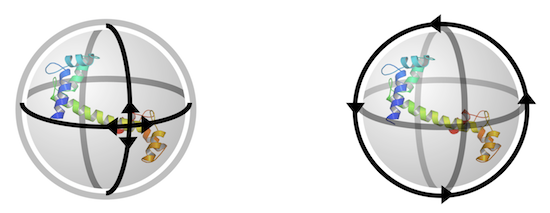

The following diagram (source: "Introduction to PyMOL" by DeLano Scientific LLC) shows you the virtual trackball rotation model used in PyMol:
