Generating CSR for a Personal Certificate

This section provides a tutorial example on how to generate a CSR for a personal certificate on an email address with the JDK keytool command.

So how can I get a free personal certificate that can be validated up to a trusted root CA? The answer is go to CAcert.org and get a personal certificate.

1. Go to CAcert.org and "Password Login" to my account with IE 8.

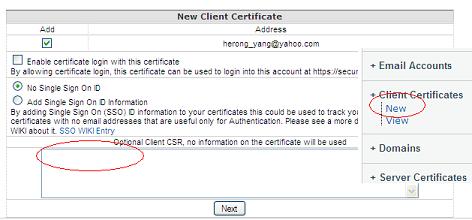

2. Click "New" under the "Client Certificate" menu. Client certificate is really a personal certificate in CAcert.org's term. The "New Client Certificate" page shows up:
Add domain name to CAcert account

3. Use JDK keytool to generate a private and public key pair. The CSR is a request asking the CA to sign your public key into a certificate. So if you do not have a private and public key pair, you should generate one.

C:\herong>\local\jdk\bin\keytool -genkey -alias herong_yang@yahoo.com
   -keystore herong.jks -storepass HerongJKS

What is your first and last name?
  [Unknown]:  herong_yang@yahoo.com
What is the name of your organizational unit?
  [Unknown]:
What is the name of your organization?
  [Unknown]:
What is the name of your City or Locality?
  [Unknown]:
What is the name of your State or Province?
  [Unknown]:
What is the two-letter country code for this unit?
  [Unknown]:
Is CN=herong_yang@yahoo.com, OU=Unknown, O=Unknown, L=Unknown,
   ST=Unknown, C=Unknown correct?
  [no]:  yes

Enter key password for <herong_yang@yahoo.com>
        (RETURN if same as keystore password): <Return>

4. Use JDK keytool to generate CSR from the private and public key pair:

C:\herong>\local\jdk\bin\keytool -certreq -alias herong_yang@yahoo.com
   -keystore herong.jks -storepass HerongJKS
   -file herong_yang_yahoo_com.csr

5. Open the CSR file, herong_yang_yahoo_com.csr, in a text editor:

-----BEGIN NEW CERTIFICATE REQUEST-----
MIICfzCCAj0CAQAwejEQMA4GA1UEBhMHVW5rbm93bjEQMA4GA1UECBMHVW5rbm93bj...

...
-----END NEW CERTIFICATE REQUEST-----

Now, I have my own private key and public pair for my email address, herong_yang@yahoo.com, stored in KeyStore file, herong.jks. I also have a CSR (Certificate Signing Request) stored in herong_yang_yahoo_com.csr ready to send to any CA to sign into a client certificate.

Last update: 2011.
