MolToImage/MolToFile - Molecule PNG Image

This section provides a tutorial example on how to use rdkit.Chem.Draw.MolToImage(m) and rdkit.Chem.Draw.MolToFile(m, f) methods to generate molecule images in PNG format and store them in PIL objects or files.

There are two main methods that generate molecule images as PIL objects or image files.

1. rdkit.Chem.Draw.MolToImage(m) - Returns a PIL image object containing a drawing of the molecule. By default, the returning PIL object represents the molecule images in PNG format.

2. rdkit.Chem.Draw.MolToFile(m, f) - Generates a drawing of a molecule and writes it to a file. By default, the generated image file uses PNG format.

Here is an example session of using these two methods:

>>> from rdkit import Chem
>>> m = Chem.MolFromSmiles('Cc1ccccc1')

>>> from rdkit.Chem import Draw
>>> p = Draw.MolToImage(m)
>>> p
<class 'PIL.PngImagePlugin.PngImageFile'>

>>> Draw.MolToFile(m, "molecule.png")

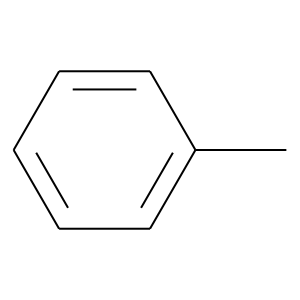

If you open the generated image file, molecule.png, you will see the following molecule image with 300x300 pixels:

Molecule PNG Image by rdkit.Chem.Draw.MolToFile(m)
Molecule PNG Image by rdkit.Chem.Draw.MolToFile(m)

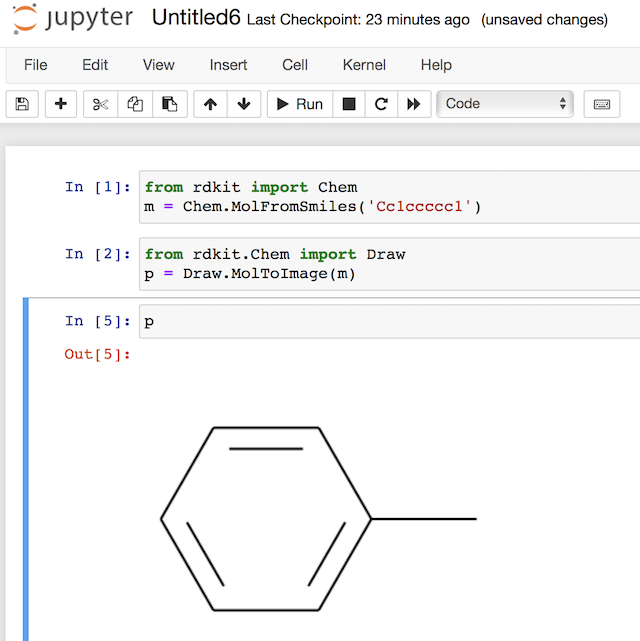

If you are running Python in a Jupyter Notebook environment, the "p" statement will actually display its PNG image in the Notebook as shown below:

Image by rdkit.Chem.Draw.MolToImage(m) in Jupyter Notebook
Image by rdkit.Chem.Draw.MolToImage(m) in Jupyter Notebook
