Processing Web Form Input in Latin1 Encoding Error

This section provides a tutorial example demonstrating Web form with default text in Latin1 encoding, but the browser converts it to UTF-8 encoding, which results form data being submitted as UTF-8 encoding.

The next test I did was to try to enter Latin1 characters as Web form input. I wrote a new test PHP script with some interesting features:

<?php
#- Web-Form-Input-Latin1.php
#- Copyright (c) 2005 HerongYang.com, All Rights Reserved.
#
  print('<html>');
  print('<body>'."\n");

# Default input text
  $input =
    '&#x54;&#xE9;&#x6C;&#xE9;&#x76;&#x69;&#x73;&#x69;&#x6F;&#x6E';
  $input_hex = '54E96CE9766973696F6E';

# Form reply determination
  $reply = isset($_REQUEST["Submit"]);

# Process form input data
  if ($reply) {
    if (isset($_REQUEST["Input"])) {
      $input = $_REQUEST["Input"];
    }
  }

# Display form
  print('<form>');
  print('<input type="Text" size="40" maxlength="64"'
   . ' name="Input" value="'.$input.'"/><br/>');
  print('<input type="Submit" name="Submit" value="Submit"/>');
  print('</form>'."\n");

# Display reply
  if ($reply) {
    print('<pre>'."\n");
    print('You have submitted:'."\n");
    print('  Text = '.$input."\n");
    print('  Text in HEX = '.strtoupper(bin2hex($input))."\n");
    print('  Default HEX = '.$input_hex."\n");
    print('</pre>'."\n");
  }

  print('</body></html>');
?>

After moving this PHP script file to Apache server document directory, I tested it with Internet Explorer (IE) with this URL: http://localhost/Web-Form-Input-Latin1.php. I saw a Web page with a form that has the suggested input text and a submit button.

The suggested Latin1 input characters was displayed correctly, even it was generated by my script as HTML entities.

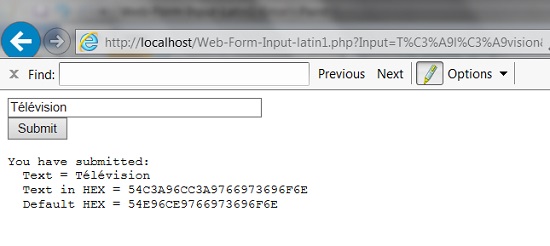

After clicking the submit button, I saw a returning Web page with the same form and a reply section. However, the French text in hex I received from the form is not the same as the one I created as the default:

Processing Web Form Input in Latin1 Encoding Error
Processing Web Form Input in Latin1 Encoding Error

It looks like my French text started from Latin1 encoding and ended in UTF-8 encoding. For some reason the browser is able to manage this difference.

  Text = Télévision
  Text in HEX = 54C3A96CC3A9766973696F6E
  Default HEX = 54E96CE9766973696F6E

It is interesting to note that the return Web page has a special URL which contains the input text inside the query string. All characters in the input text are ASCII characters except two, which are UTF-8 characters presented as Hex values in the URL.

http://localhost/Web-Form-Input-latin1.php
 ?Input=T%C3%A9l%C3%A9vision&Submit=Submit

See the next tutorial on how to troubleshoot and fix the issue.

Last update: 2019.
