Steps and Application Components Involved

This section describes steps and application components involved in retrieving Chinese text from MySQL database to Web pages.

In order to fetch Chinese characters from MySQL database and display it on Web pages, you need to understand how a Chinese input text is being retrieved from the database and transferred through various application components to reach a Web browser. Here is a simplified diagram that shows the steps and application components involved in this process:

R1. Database tables
      |
      |- MySQL
      v
R2. Result sets
      |
      |- PHP engine
      v
R3. CGI output
      |
      |- Web server
      v
R4. HTTP response (HTML document)
      |
      |- Web browser
      v
R5. Chinese characters on the screen

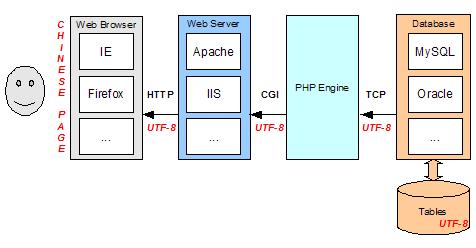

If the Chinese text is stored in MySQL database using UTF-8 encoding, you need to make sure that all applications mentioned in the above diagram are friendly to UTF-8 encoding. See the following picture:
Retrieving Chinese Text from MySQL Database to Web
