RDKit rdMolDraw2D.PrepareAndDrawMolecule - Substructure Highlight
This section provides a tutorial example on how to highlight a substructure in a molecule with m.GetSubstructMatch(s) and rdMolDraw2D.PrepareAndDrawMolecule() methods in RDKit library.
If you want to highlight a substructure in a molecule, you can use:
Here is an example of from the "Getting Started with the RDKit in Python" guide at https://www.rdkit.org/docs/GettingStartedInPython.html.

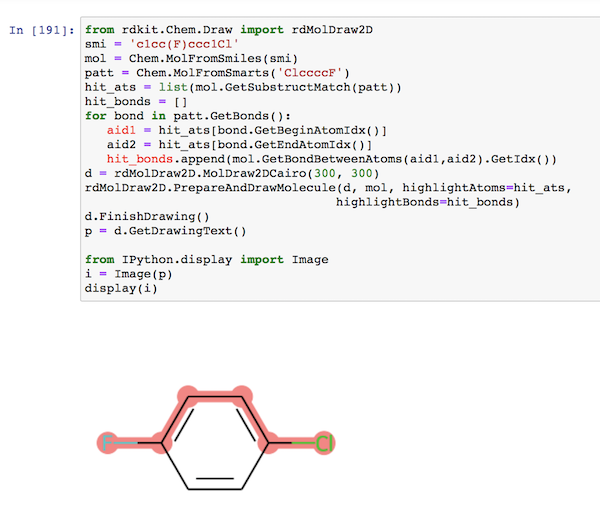

from rdkit.Chem.Draw import rdMolDraw2D smi = 'c1cc(F)ccc1Cl' mol = Chem.MolFromSmiles(smi) patt = Chem.MolFromSmarts('ClccccF') hit_ats = list(mol.GetSubstructMatch(patt)) hit_bonds = [] for bond in patt.GetBonds(): aid1 = hit_ats[bond.GetBeginAtomIdx()] aid2 = hit_ats[bond.GetEndAtomIdx()] hit_bonds.append(mol.GetBondBetweenAtoms(aid1,aid2).GetIdx()) d = rdMolDraw2D.MolDraw2DCairo(300, 300) rdMolDraw2D.PrepareAndDrawMolecule(d, mol, highlightAtoms=hit_ats, highlightBonds=hit_bonds) d.FinishDrawing() p = d.GetDrawingText() from IPython.display import Image i = Image(p) display(i)
