What Is an Area?

This section describes XSL-FO Area, which is a rectangular area with formatting properties on the presentation medium that represents a unit of formatted information.

What Is a Area? - An area in XSL-FO is a rectangular area with formatting properties on the presentation medium that represents a unit of formatted information. Multiple smaller areas can be put together to create a larger area.

For example, in a printed book, a single glyph is considered as an area representing a letter with a specific font style, color and geometric properties.

A paragraph is also considered as an area made of lines of glyph areas with paragraph geometric properties.

A page is also considered as an area made of multiple paragraph area s with page geometric properties.

The most important and common properties of an area are its geometric properties, which can summarized as:

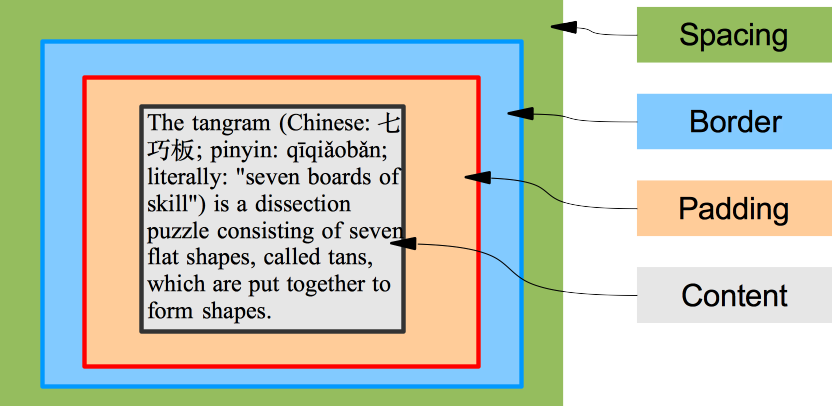

The following diagram illustrates geometric properties of a paragraph area:

Area Geometry Properties: Spacing, Border, Padding, Content

As you can see from the above diagram, geometric properties of an area can be described in more details as below:
