"obabel ... -o svg -xS" - Ball/Stick Depiction in SVG
This section provides a tutorial example how to generate a SVG picture of a molecule structure in ball-stick style using the Open Babel 'obabel ... -o svg -xS' command.
If you want to see a ball and stick depiction of a molecule in SVG format, you can use the "-o svg -xS" option with the "obabel" command.
For example, the following command generates a ball and stick depiction of of the tyrosine molecule in SVG format:
herong$ obabel "-:c1cc(ccc1CC(C(=O)O)N)O" -O tyrosine-ball.svg --gen2D -xS 1 molecule converted
As a comparison, running the following command generates a normal skeleton depiction of of the same molecule in SVG format:
herong$ obabel "-:c1cc(ccc1CC(C(=O)O)N)O" -O tyrosine-skeleton.svg 1 molecule converted

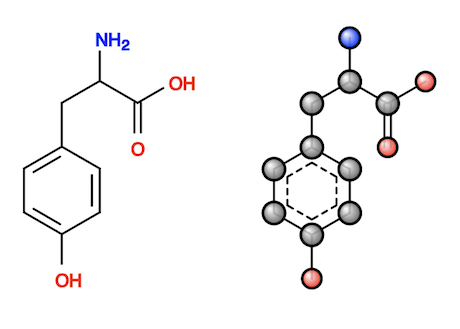

Open both output files, tyrosine-skeleton.svg and tyrosine-ball.svg, in a Web browser, you see the differences:

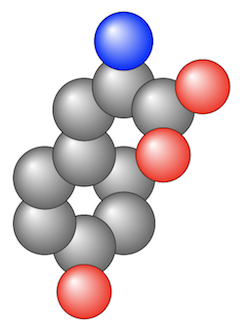

Note that the above ball and stick depiction was generated by Open Babel 2.4. The ball and stick depiction generated by Open Babel 3.1.0 does not look good. See the picture below:
