∟Memory Usages of Processes

∟Memory Report from Performance Console

This section provides a tutorial example on how to use Performance console in Control Panel to verify memory usage numbers reported by the System.Diagnostics.Process class.

Another way to verify memory usage numbers reported by the System.Diagnostics.Process class is use the Performance console in Control Panel.

1. Run the tutorial example program used in the previous section, LongSleep.exe.

Current process: System.Diagnostics.Process (LongSleep)
Private Memory: 8740864
Virtual Memory: 89157632
Working Set: 5591040
Paged Memory: 8740864
Paged System Memory: 100228
Non-paged System Memory: 3988

2. Click "Start" > "Control Panel" > "Performance and Maintenance" > "Administrative Tools" > "Performance". The "Performance" console shows up.

3. Click the Add icon or press <Ctrl>-I, The "Add Counters" dialog box shows up.

4. Select "Process" in "Performance object:" field. Select "LongSleep" in "Select instances from list:". Check "All counters" checkbox. Click "Add" button and "Close" button.

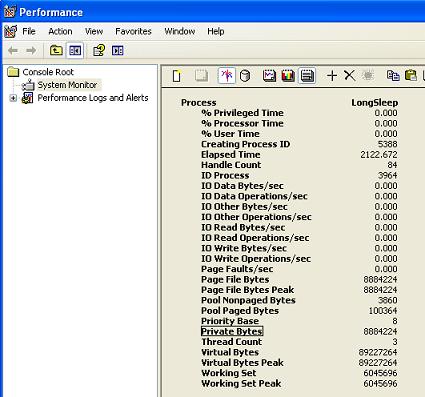

5. Click the Report icon or press <Ctrl>-R.

Memory usage numbers reported for LongSleep are:

Process:           LongSleep
Page File Bytes:     8884224
Pool Nonpaged Bytes:    3860
Pool Paged Bytes:     100364
Private Bytes:       8884224
Virtual Bytes:      89227264
Working Set:         6045696

6. Compare the program output and the "Performance" console report, we can map "Performance" console values to System.Diagnostics.Process properties:

     Performance console     System.Diagnostics.Process

         Page File Bytes  =  ?
     Pool Nonpaged Bytes  =  Non-paged System Memory
        Pool Paged Bytes  =  Paged System Memory
           Private Bytes  =  Private Memory
           Virtual Bytes  =  Virtual Memory
             Working Set  =  Working Set
