SAAJ SOAPMessage Structure and Classes/Interfaces

This section describes the SAAJ SOAPMessage structure, classes and interfaces that allows you to manage contents of a SOAPMessage object.

In the previous section, we learned how to create an empty SOAPMessage object. Now we want to know to insert contents into a SOAPMessage object. To do this, we need to understand the internal structure of a SOAPMessage object and what classes are used to represent different parts of a SOAPMessage object.

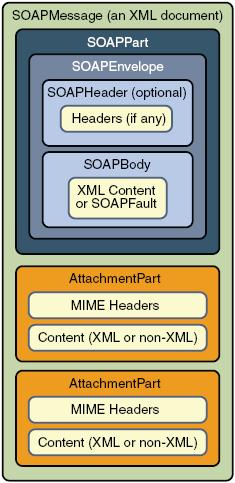

The high-level structure of a SOAPMessage object is well presented by this picture from the "The Java EE 5Tutorial" book by Sun Microsystems.
SOAPMessage Internal Structure

This picture shows a SOAPMessage object with a SOAP message and 2 attachments represented as various objects and organized in this structure:

A SOAPMessage object - A container for a SOAP message and attachments

  A SOAPPart object - A container for a SOAP header and a SOAP body

    A SOAPEnvelope object - Represents a SOAP envelope
      A SOAPHeader object - Represents a SOAP header
        SOAP Headers
      A SOAPBody object - Represents a SOAP body
        SOAP Content

  A AttachmentPart object - A container for an attachment
    MIME Headers
    Content

  A AttachmentPart object - A container for an attachment
    MIME Headers
    Content

Interfaces listed below and their methods will allow you to manage various objects contained in a SOAPMessage object:

javax.xml.soap.SOAPPart -
   A class representing container for a SOAP message and attachments

javax.xml.soap.AttachmentPart -
   A class representing a single attachment

javax.xml.soap.SOAPEnvelope -
   An interface representing the SOAP envelope

javax.xml.soap.SOAPHeader -
   An interface representing the SOAP header

javax.xml.soap.SOAPBody -
   An interface representing the SOAP body

Both SOAPHeader and SOAPBody interfaces inherits org.w3c.dom.Element, org.w3c.dom.Node, and javax.xml.soap.SOAPElement interfaces, which provide more methods to help you manage contents of the SOAP header and the SOAP body.

Last update: 2009.
